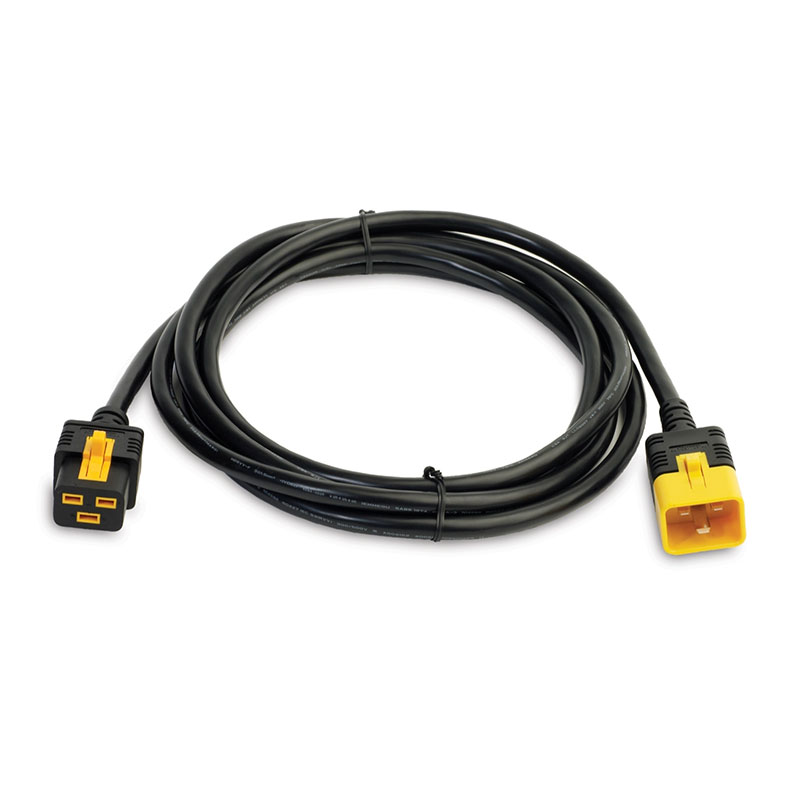

APC, Power Cord, Locking C19 to C20, 3.0M

MFG #: AP8760
ATECH #: APCAP8760
UPC : 731304288145
Manufacturer : APC
If you don't have an account, Become a Reseller!

Marketing Information

Free up space and secure power cords between rack-mount PDUs and attached IT equipment with this exclusive easy-to-use cord retention method. While these cords will fit into any standard IEC receptacle or power inlet; the "locking" feature is enabled only when used with APC AP8000 series Rack PDUs or IT equipment with built-in locking receptacles. These locking connectors reduce the probability of accidentally disconnecting cords and dropping loads.


Technical Specifications

  • Product or Component Type: Power cord
  • Input Connection Type: IEC 60320 C20
  • Cable length: 9.8 ft (3 m)
  • Number of cables: 1
  • Color: Black
  • Height: 9.06 in (230 mm)
  • Width: 9.06 in (230 mm)
  • Depth: 1.8 in (45 mm)
  • Net Weight: 1.12 lb(US) (0.51 kg)
  • Mounting preference: No preference
  • Mounting Mode: Not rack-mountable
  • Max line current: 16 A
  • Maximum Total Current Draw per Phase: 16 A
  • Number of power socket outlets: 1 IEC 60320 C19
  • Cord Length: 10 ft (3.05 m)
  • Product Certifications: CCC; CSA; PSE; UL Listed; VDE
  • Ambient air temperature for operation: 32…167 °F (0…75 °C)
  • Relative Humidity: 20…80 %
  • Operating altitude: 0...10000 ft
  • Ambient Air Temperature for Storage: -13…167 °F (-25…75 °C)
  • Storage Relative Humidity: 20…80 %
  • Storage altitude: 0…50000 ft (0…15240 m)
Net Weight: 1.12 lbs
UOM: EACH
